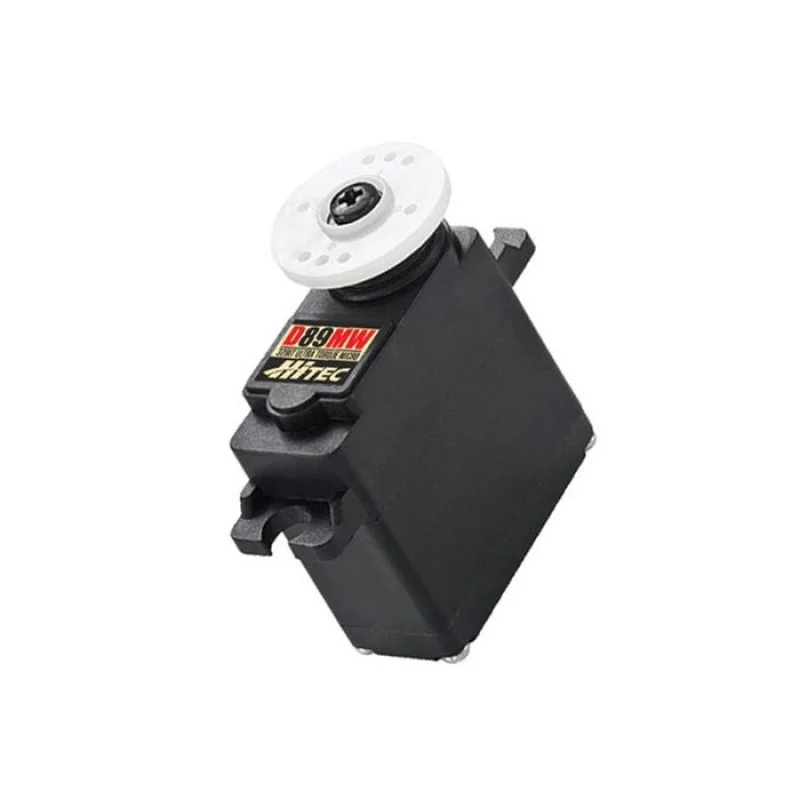

HRC36089 Hitec D89MW Digital Micro Ultra Torque Servo

Hitec D89MW Digital Micro Ultra Torque Servo

• Programmable high respondence digital amplifier with MOSFET drive (requires HITEC programmer HFP-30 or DPC-11)
• Narrow dead band width and high standing torque
• Durable metal gears with dual ball bearings

Operating Voltage Range (Volts DC)4.8V ~ 7.4VSpeed (Second @ 60)0.17 ~ 0.11Maximum Torque Range oz. / in.67.02 ~ 103.33Maximum Torque Range kg. / cm.4.8 ~ 7.4Current Draw at Idle30 mANo Load Operating Current Draw300 mAStall Current Draw2,900 mADimensions (Inches)1.14 x 0.51 x 1.18Dimensions (Metric)29.0 x 13.0 x 30.0Weight (Ounces)0.88Weight (Gram)25Circuit Type32bit Programable DigitalMotor TypeCoreless Metal BrushGear Material5 Metal GearsBearing TypeDual Ball BearingOutput Shaft (type / mm)25 / 6Case MaterialPlastic
