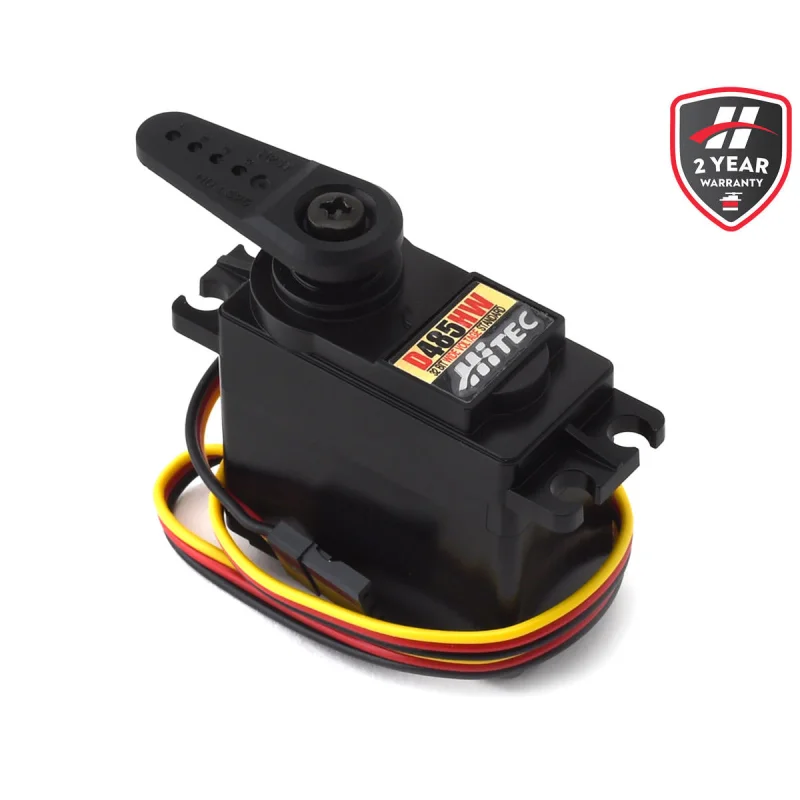

HRC36485 Hitec D485HW Digital HV High Torque Programmable Servo

This is the Hitec High Votage D485HW Karbonite Standard Servo. Replacing the standard-size HS-5485HB and HS-5495BH servos, the sport class D485HW brings faster response and accuracy to your various radio control needs with D-series high resolution 32-bit technology and wide voltage operation.

Specifications: Operating Voltage Range (Volts DC): 4.8V ~ 7.4V Speed (Second @ 60): 0.20 ~ 0.15 Maximum Torque Range oz./in.: 72 ~ 104 Maximum Torque Range kg./cm.: 4.8 ~ 7.4 Current Draw at Idle: 30 mA No Load Operating Current Draw: 320mA Stall Current Draw: 1,500mA Dead Band Width: N/A Dimensions (Inches): 1.57 x 0.78 x 1.49 Dimensions (Metric): 39.8 X 19.8 X 38.0 Weight (Ounces): 1.59 Weight (Gram): 45.0 Circuit Type: 32 bit Programable Digital Motor Type: 3 Pole Cored Carbon Brush Gear Material: MK 1st Gear & 3 Karbonite Resin Gears Bearing Type: Top Ball Bearing Output Shaft (type / mm): 25 / 6 Case Material: Plastic Dust/Water Resistance: N/A Connector Gauge (AWG)/Strand Count: N/A
Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
