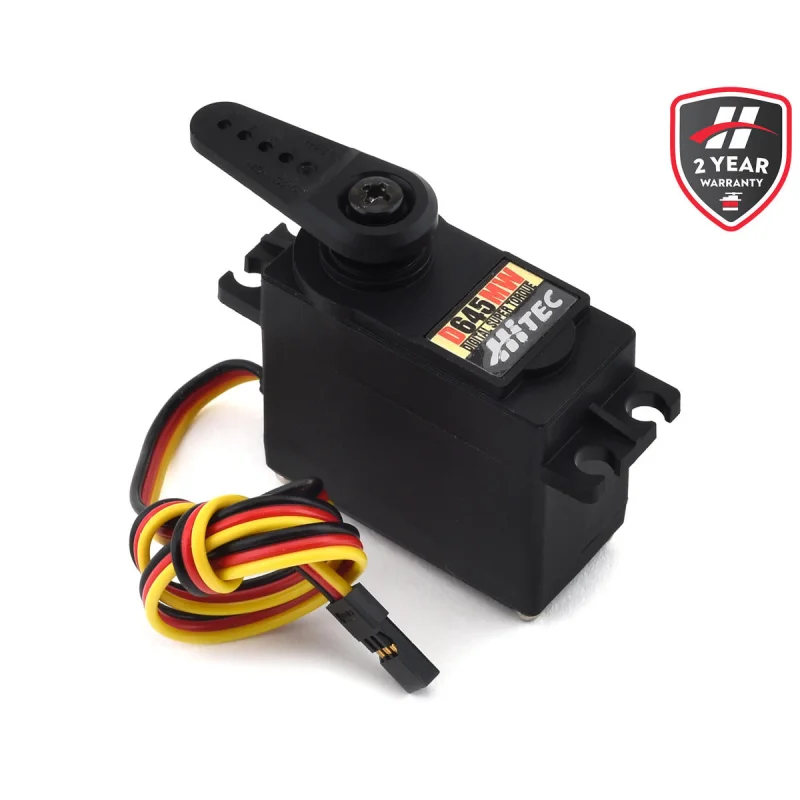

HRC36645 Hitec D645MW Digital HV Super Torque Servo

This is the Hitec High Votage D645MW High Torque Metal Gear Servo. The metal D-645MW is part of Hitec’s D-Series servo line. All Hitec D-Series servos have been designed using Hitec’s redesigned, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitecs industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline

Programmable Functions:

• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications: Operating Voltage Range (Volts DC): 4.8V – 8.4V Speed/Torque Value Voltages (Volts DC): 4.8V ~ 6.0V ~ 7.4V Speed (Second @ 60): 0.28 ~ 0.20 ~ 0.17 Maximum Torque Range oz./in.: 115 ~ 158 ~ 180 Maximum Torque Range kg./cm.: 8.3 ~ 11.3 ~ 12.9 Current Draw at Idle: 30 mA No Load Operating Current Draw: 500 mA Stall Current Draw: 2,650 mA Dead Band Width: 2 s Dimensions (Inches): 1.59 x 0.77 x 1.48 Dimensions (Metric): 40.6 x 19.8 x 37.8 Weight (Ounces): 2.11 Weight (Gram): 57.0 Circuit Type: 32bit Programable Digital Motor Type: 3 Pole Metal Brush Ferrite Gear Material: Metal Bearing Type: Dual Ball Bearing Output Shaft (type / mm): H25T Case Material: Plastic Dust/Water Resistance: N/A Connector Gauge (AWG)/Strand Count: 22/60
Accessories:

• Metal Gears Set
• Metal Plastic 1st Gear Set
• Plastic Case Set
• Applicable Horns

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
