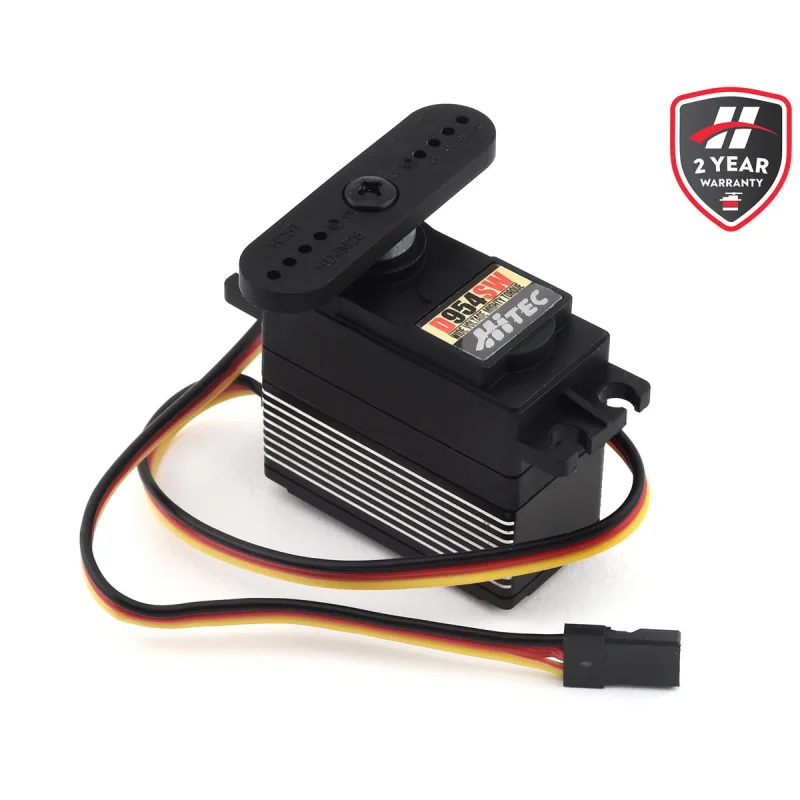

HRC36954 Hitec D954SW Digital HV High Torque Servo

The Hitec D954SW High Torque Steel Gear Servo, a technologically-advanced servo that is powered by Hitec’s 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. The servos unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. Built with incredibly durable steel gears, the D930SW are the perfect upgrade from Hitec’s popular HS-7954SH servo.
Features:

• Programmable PWM Digital Amplifier
• 32-Bit MCU with 12-Bit ADC Circuitry
• 4096 Resolution
• 1M Cycle Long Life Potentiometer
• Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
• Dual Ball Bearing Supported Output Shaft
• 25-Tooth Output Spline
• Coreless Metal Brush Motors
• Nylon Reinforced Plastic Upper and Lower Case
• Diamond Cut Aluminum Heat Sink Center Case
• Dust Resistant and Splash Proof Case
• Programmable Features:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset

Specifications: Operating Voltage Range (Volts DC): 4.8V ~ 7.4V Speed (Second @ 60): 0.19 ~ 0.12 Maximum Torque Range oz./in.: 251 ~ 405 Maximum Torque Range kg./cm.: 18.0 ~ 29.0 Current Draw at Idle: 30 mA No Load Operating Current Draw: 500 mA Stall Current Draw: 5,200 mA Dead Band Width: 1 s Dimensions (Inches): 1.57 x 0.78 x 1.46 Dimensions (Metric): 40.0 x 20.0 x 37.0 Weight (Ounces): 2.40 Weight (Gram): 68.0 Circuit Type: 32bit Programable Digital Motor Type: Coreless Metal Brush Gear Material: MK 1st Gear & 3 Steel Alloy Gears Bearing Type: Dual Ball Bearing Output Shaft (type/mm): H25T Case Material: Plastic/Aluminum Dust/Water Resistance: Splash Proof Connector Gauge (AWG)/Strand Count: 20/80
Includes:

• (1) D954SW High Torque Steel Gear Servo
• (3) Steel Alloy Gears Set
• Metal / Karbonite 1st Gear Set
• Plastic/Aluminum Case Set
• Applicable Horns & Screws

Limited Warranty:
Hitec Servo Warranty: Each Hitec servo is backed by a limited two-year warranty from the date of purchase. Hitec RCD USA, INC. shall REPAIR OR REPLACE, at Hitec RCD, INC., defective equipment covered by this warranty, otherwise the purchaser and/or consumer is responsible for any charges for the repair or replacement of the product.
