Lithium Cube EX6

Description

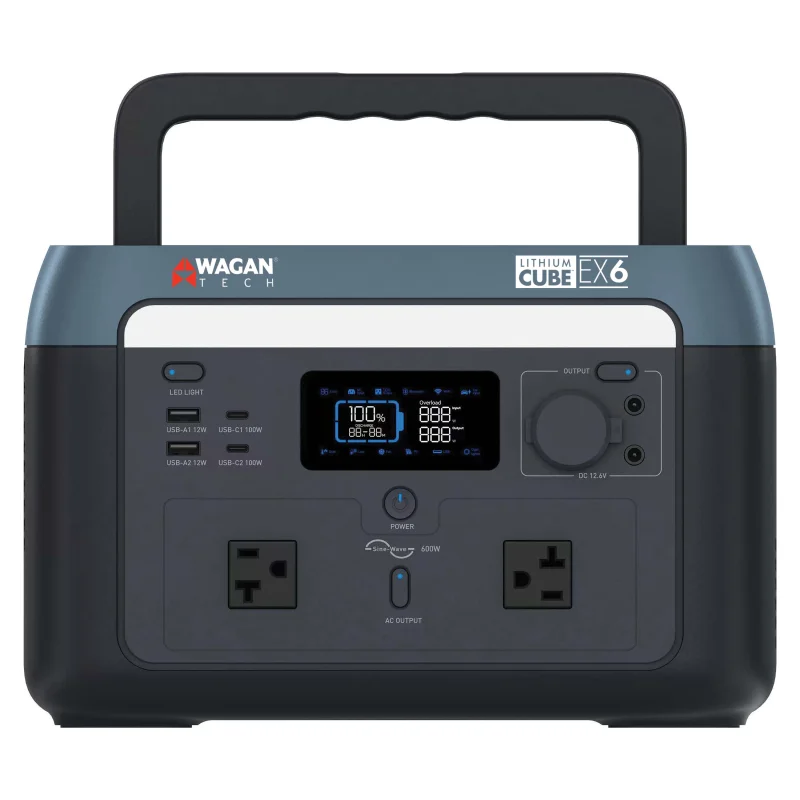

Wagan Lithium Cube EX6 Compact Power. Big Performance.
Whether you’re tackling off-road adventures, camping under the stars, or preparing for unexpected outages, Wagan Lithium Cube EX6 delivers reliable, high-capacity power in a compact, travel-friendly design. Built with advanced LiFePO battery technology, this 512Wh portable power station offers exceptional safety, longer battery life, and efficient performance, making it the perfect companion for outdoor expeditions and emergency backup alike.

Reliable AC & DC Power, Anywhere
Wagan Lithium Cube EX6 delivers 600W of continuous pure sine wave power (with 1000W surge) through two 120V AC outlets, allowing you to safely run sensitive electronics like laptops, TVs, portable refrigerators, medical devices, and morejust like plugging into a wall outlet at home.
Need DC power? The EX6 has you covered with two USB-A ports (12W max each), two fast-charging USB-C PD ports (100W max each), one 12V car socket, and two DC5521 barrel ports, all designed to support multiple devices at once. A built-in AC/DC selector switch ensures you can safely toggle between output modes depending on your needs. From weekend overlanding trips to emergency backup at home, the Lithium Cube EX6 provides dependable, flexible powerwherever life takes you.

Fast & Versatile Charging
Recharge from 0100% in just 1.5 hours using the 600W AC adapter. When wall power isn’t available, connect up to 200W of solar panels via the built-in MPPT controller, fully recharging the unit in approximately 3 hours. A DC car charging option is also included, giving you flexibility wherever the road takes you.

Built-In Backup Power with UPS and EPS Support
Wagan Lithium Cube EX6 is equipped with reliable UPS and EPS functions to keep your devices running during unexpected power outages. When connected to wall power, it operates in bypass mode and automatically switches to battery power within 10 milliseconds if the grid goes downensuring smooth, uninterrupted operation. Certified under ULs EPS standards, the Lithium Cube EX6 is well-suited for home, office, and emergency backup use. For best performance, it’s recommended to connect one device at a time and confirm compatibility if using with sensitive equipment.

Built for Safety and Longevity
Wagan Lithium Cube EX6 is built with high-performance LiFePO battery cells that offer over 3,000 charge cycles, far outlasting traditional lithium-ion options. It features multiple layers of protection, including over-temperature, over-discharge, overload, short-circuit protection, and more. Whether you’re camping, preparing for emergencies, or powering sensitive gear, the Lithium Cube EX6 keeps you safe and powered with confidence.

Designed with You in Mind
Every detail is designed for your convenience: a fold-flat handle for easy carrying, an intuitive color LCD display that clearly shows remaining battery, time, power usage, and alerts, with a light strip above the screen to help you see it clearly at night. Weighing just 15.5 lbs, Wagan Lithium Cube EX6 is compact enough to take anywhere while delivering reliable power. Whether youre camping with family or heading out on a solo adventure, its the perfect companion for real-life moments.

Quick List of Features:

• 600 watt pure sine wave inverter (1,000 watts peak)
• One 12 volt automotive socket for powering DC appliances (up to 10 amps)
• Two DC 5521 outputs(12.6V 3A)
• Two AC Outlets
• Four USB power ports for charging/operating cell phones and tablets
• DC charging cable (fused)
• A comprehensive display shows charge status and power consumption
• LED light (3 brightness mode and SOS mode)
• Solar charging port connecting panels to the internal solar charge controller
• Flat-fold handle for easy lifting
• Certifications: UL, FCC

WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Specs

Battery

• Lithium Iron Phosphate Battery (LiFeP04)
• 512Wh, 25.6VDC 20Ah

Power Inverter (120V AC) Output

• Waveform: Pure Sine Wave (PSW)
• Output: 100-120V AC
• Continuous Output: 600W
• Peak Surge: 1000W
• Frequency: 60Hz
• Cooling Fan: Thermally Controlled
• AC Outlets: 2
• Over-heat protected: Yes
• Short-circuit protected: Yes
• Over-voltage protected: Yes
• Under-voltage protected: Yes

Solar Charge Controller

• Type: MPPT
• Input: Anderson power-pole
• Input Voltage: 12-20V DC
• Input Current: 10A
• Max Solar Input: 200W

AC Charger

• Input Voltage: 100-120V
• Input Frequency: 50/60Hz
• AC Charger Output: 600W

DC Charger (Input)

• Fuse: 8A
• Length: 5 Feet
• Acceptable Input: AC (via voltage converter), DC, Solar Panels, Wind Turbine, Hydro-electric
• Anderson Connectors:Built-in
• Input Range: 12V
• Input Max Amperage: 8A

DC Socket (Output)

• Regulated 12.0V Socket
• 12VDC Socket Count: 1
• Socket Rated Output: 10A

USB Power Ports

• USB Power Port Count: 4
• USB-C: 2 ports
  – 100W PD(5V, 9V, 12V, 15V 3A, 20V 5A)
• USB-A (standard USB): 2 ports
  – 12W (2.4A)

Build Specs

• Pass Through Charging: Yes
• Folding Handle
• AC Charger: Included
• DC Charger: Included
• Operating Temperature: 32F – 104F (0C – 40C)
• Storage Temperature: -4F – 122F (-20C – 50C)
• Operating Humidity: 10% – 90%
• Storage Humidity: 5% – 95%
• LED Worklight: 60 Lumens
• LED Worklight Modes: High, SOS
• Weight: 15.5 lbs.
• Dimensions (LxWxH): 11.9 x 9 x 7.6 in
• Display: Full Color, Full operational details
• Warranty (USA): 2 Years

Certifications & Protections

• UL Certification
• Over-voltage Protection
• Over-charge Protection
• Short circuit Protection
• Reverse Polarity
• Overload Protection

WARNING: This product can expose you to chemicals including DEHP, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

100W Solar Panel

• Panel Sold Separately
• Power Cable Length: 78″
• Panel Open Dimensions (inches): 46 x 21.3 x 1.2
• Panel Closed Dimensions (inches): 23 x 21.3 x 1.2
• Panel Composition:Monocrystalline, ETFE Matte surface
• Panel Efficiency: 23%
• Max Wattage: 100 Watts
• Solar Controller: No
• Unit Weight: 6.8 lbs.
• Open Circuit Voltage / Voc: 24.1V
• Max Power Voltage / Vmp: 20.5V
• Short Circuit Current / Isc: 5.1A
• Max Power Current / Imp: 4.9A
• Operating Temperature Range:-4 – 140F
• Item Number (MPN): EL8214
• UPC:08436708214-5
• Warranty: 2 years

Learn More about the 100W Solar Panel: Click here
