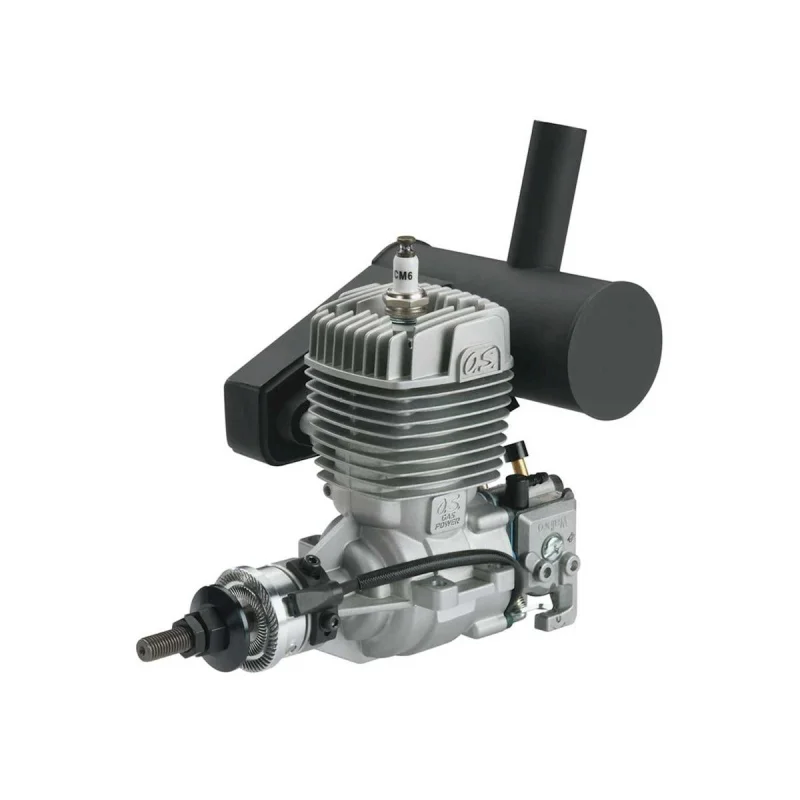

OSM38200 OS Engines GT22 Gasoline Aircraft Engine, 22cc, with E5040 Silencer, OSM38200

The O.S. GT22 22cc Gas 2-Cycle Airplane Engine with Muffler is a great option for fast starts, high power and amazing flight performance. Designed to work with planes that require a 2-stroke .60-.90 or 4-stroke 1.20 glow engines. The GT22 is a great choice for mild to wild builds and includes a Pitts style muffler for out of the box setup. Get the O.S. GT22 and be up and flying in no time.

Features:

• Uses beam mounting for easy installation
• Rear-mounted Walbro carburetor
• Reinforced Pitts style muffler
• Redesigned for even easier starting
• Includes single prop nut with locking nut

Specifications: Cylinders: Single Displacement: 1.350 cu in (22.12 cc) Bore: 1.260″ (32.0mm) Stroke: 1.083″ (27.5mm) RPM Range: 1,800 – 9,000 HP: 2.66hp (2.7ps) @ 9,000rpm Benchmark Prop: 15×10 Prop Range: 16×8 – 17×8 Recommended Fuel: 87-93 octane gasoline Oil Type & Content: 50:1 mix ratio 2-cycle Crankshaft Type: Threaded Crankshaft Threads: UNF-2A 5/16-24 Plug Type: CM-6 spark plug Carb Type: Walbro (Rear Mounted) Muffler Type: 2-piece aluminum Engine Weight: 26.86oz (761.6g) (Without Muffler) Muffler Weight: 4.68 oz (132.6g) Ignition Weight: 3.70 oz (105 g) Crank Case With Drive Hub Length: 5.5″ (139.5mm) Width at Mounting Tabs: 2.7″ (70mm) Height from Bottom of Mounting Tab to Top of Muffler: 3.1″ (140.5mm)

Includes:

• (1) O.S. GT22 2-Stroke Gas Engine
• (1) Pitts Style Muffler
• (1) O.S. Ignition System
• (1) CM-6 Spark Plug
• (1) Manual
